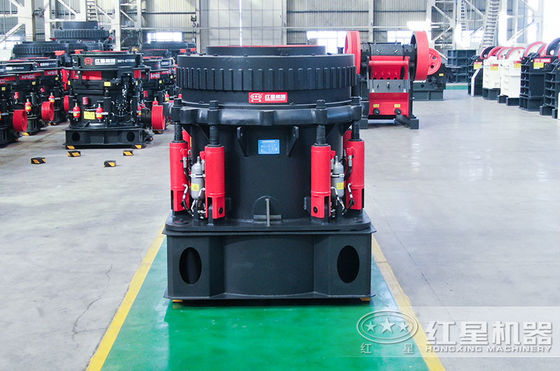

Factory Good Price Large Capacity GYS Series Hydraulic Cone Crusher GYS400 for Granite Basalt Hard Rocks Crushing Hot in Sale

Name: Factory Good Price Large Capacity GYS Series Hydraulic Cone Crusher GYS400 for Granite Basalt Hard Rocks Crushing Hot in Sale
Brand: Henan Hongxing Mining Machinery Co., Ltd.
Availability: InStock

Large Image : Factory Good Price Large Capacity GYS Series Hydraulic Cone Crusher GYS400 for Granite Basalt Hard Rocks Crushing Hot in Sale

Product Details:

Contact Now

Detailed Product Description

Product Description

Hydraulic cone crusher, the latest generation of crusher in today's mining construction industry, can replace spring cone crusher and general hydraulic cone crusher, and it is one ideal equipment in large stone plant and mining crushing.

Application of Hydraulic Cone Crusher :

The hydraulic cone crusher is widely used in various fine crushing processes, material crushing in building materials, metallurgy, mining, refractory materials, cement, abrasives and other industries. It is especially suitable for crushing and crushing hard materials such as granite, limestone, sandstone and pebbles, and the products are of uniform size and high quality. It is a new product that replaces crushing equipment and replaces common crusher in today's mining construction industry. It is an ideal equipment for large stone factories and mining crushing.

The Advantages of Hydraulic Cone Crusher :

1. the use of the safety cylinder can automatically control the overload protection and clear cavity function
2. fully automatic control system, easy to achieve remote and machine side control
3. hydraulic lubrication combined oil station, small size, simple wiring
4. the discharge port is adjusted by hydraulic push cylinder, easy to adjust
5. the dust removal mechanism is sealed with dry oil. Reliable structure and low failure rate

The Working Process of Hydraulic Cone Crusher :

When the hydraulic cone crusher works, the rotating of the motor drives pulley or coupling, shaft and cone axis in a axis, to make eccentric shaft do periodic rotation-swing movement. After materials entering the crushing cavity from the feeding port, they will be impacted, squeezed and grinded by the eccentric shaft and rolling mortar wall, resulting in a crushing effect. Hydraulic overload system can solve the failure when the machine is in failure or stopped abnormally, which plays a positive role as insurance and greatly reduces maintenance cost and increases productivity.

Its Structure :

Its small parts :

Eccentric sleeve

Support sleeve

Big gear + eccentric sleeve

Support sleeve + locking ring + adjusting ring

Moving cone body + spindle

Bowl-shaped tile + bowl-shaped tile base

Technical data :

Model	Cavities	Max.feeding size(mm)	Discharge opening (mm)	Power(kw)	Capacity(t/h)
GYS400	C1	190	19-51	200	207-400

After Sales Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

Company Introduction

Henan Hongxing Mining Machinery Co., Ltd is a Joint -Stock Mining Machinery Manufacturing enterprise. The head Quarter Hongxing
group is located at the High& New Technology Industries Development Zone of Zhengzhou,China .
It Covers an area of 350,000 square meters Which include 260,000 m2 of standard heavy duty industry workshops , There are more
than 600 sets equipment ,Including large & medium sized Metal Processing ,Riveting and Installing equipment

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally 25-50 working days for Ball Mill ,depends on the Model .

About 15-25 days for the Crushing Palnts , Most of the main machines in stock .

Q: To get the Project Design & Quotation , what should be offered

A: Our engineer need to know your requirement , also the information of Raw Material very well , then we can offer the deisgn and
quotation accoridngly . Generally please do send us the information as follow , they willl be very helpful .

1.What's the Raw Material ? 2. General Input Size ? 3. Processing Capacity ? 4. More Details if Possible.

Q: What is your terms of payment ?

A: T/T ,30% in advance ,balance before shippment.
L/C 100% at Sight
