GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control

GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control

Large Image :  GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control

Product Details:
Contact Now
Detailed Product Description

Product Description
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 0

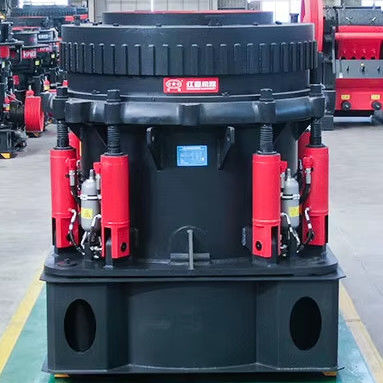

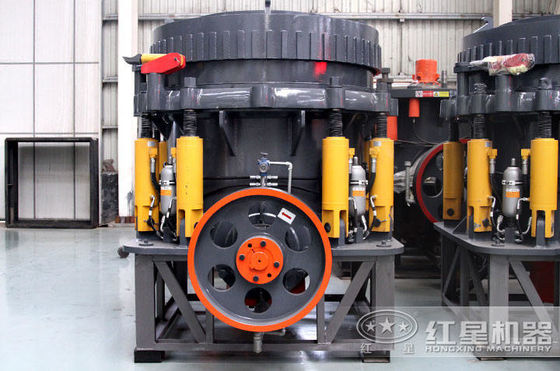

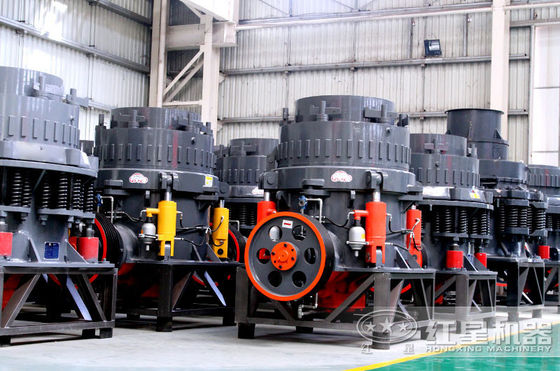

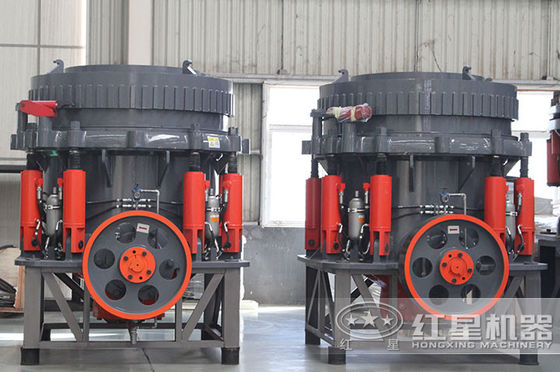

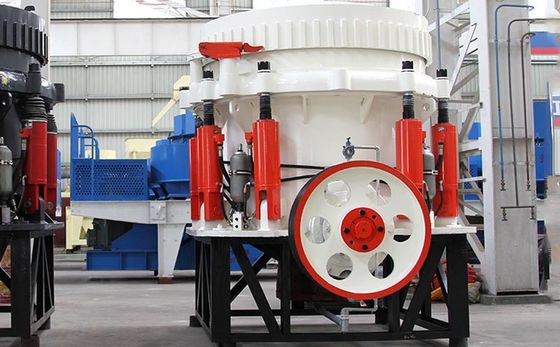

GYS HYDRAULIC CONE CRUSHER
GYS hydraulic cone crusher is a new type of cone crusher that our company optimizes to combine the advantages of single-cylinder hydraulic cone crusher and PSG cone crusher. The high-performance crushing cavity type and the high crushing frequency are combined to improve the machine's processing capacity. It adopts advanced automatic control design concepts and inherits the characteristic of reliable structure and low failure rate of traditional PSG series cone crushers, which can reduce downtime and reduce workers. Labor intensity. Due to the principle of laminating and crushing, the crushed products are mostly cubic structures, which greatly reduces the needle-like materials.
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 2
Application fields
Metallurgical industry, building materials industry and silicate industry. Construction stone crushing, metal ore crushing, cement, road construction, chemical energy and other fields.
Product Structure
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 4
Product structure
The structure of the cone crusher mainly includes a frame, a horizontal shaft, a moving cone, a balance wheel, an eccentric sleeve, an upper crushing wall (fixed cone), a lower crushing wall (moving cone), a hydraulic coupling, a lubrication system, and a hydraulic system.
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 6
Working Principle
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 8
Working principle
When the cone crusher is working, the motor rotates through the pulley or coupling, the transmission shaft and the cone part to make a pendulum motion around a fixed part under the force of the eccentric sleeve, forcing the crushing wall to sometimes approach and sometimes deviate from the whitening wall surface fixed on the adjusting sleeve. In this way, the ore will be continuously impacted, squeezed and bent in the crushing chamber to achieve ore crushing.
Equipment Advantage
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 10
Equipment advantage
A) Automatic control of overload protection and cleaning chamber function by using bumper;
B) Fully automatic control system is easy for remote and side-by-side control;
C) Hydraulic lubrication oil station with small volume Electrical connection adopts aviation plug, no wiring required;
D) Discharge opening is adjusted by hydraulic cylinder;
E) The dust collector is sealed with dry oil. Reliable structure and low failure rate;
F) The steel frame base structure is adopted, which has low requirements for the foundation and reduces the foundation investment.
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 12
Technical parameters
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 14
Model
Cavities
Diameter of large end of crushing  cone(mm)
Feeding size(mm)
Max.feeding size(mm)
Adjusting range of discharge opening(mm)
Processing capacity(t/h)
Power(kW)
GYS400
C1
1300
241
190
19-51
207-400
200

C2

210
168
16-38
162-350

C3

137
110
13-31
126-310


F1

105
85
8-25
109-230


F2

89
70
6-16
82-230

F3

64
50
3-16
40-230

GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 16
Packing & Delivery
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 18
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 20
Customer site
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 22
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 24
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 26
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 28
Company Profile
Hongxing Group is a comprehensive large scale joint stock enterprise integrating scientific research, production, sales and after sales. Formerly known as the 55201 Machine Factory of the Chinese People's Liberation Army, it was a military enterprise and an important enterprise of "high-tech" scientific research and technology development in China at that time, with a strong technical background.The existing R&D,management, production and marketing staff of more than 2,300 people, four modern production bases covering an area of 350,000 square meters, is a national high tech enterprise and domestic high-e mining machine production and
export base. The Group focuses on mining machine manufacturing, covering four series crushing sand making, screening and grinding, while providing customers with engineering design and EPC general contracting services, adhering to the "one enterprise, one policy" tailor-made ore processing solutions.
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 30
Four major production bases
For more than 40 years, the Group has never forgotten t he original intention of creating a Chinese industrial brand and creating a world class mining machine, always adhering to the mission of creating greater value for customers, continuously improving scientific research investment in the development of new products, optimizing and upgrading project solutions, and making unremitting efforts to improve the production and operation income of customers. Products have passed ISO9001, CE (European Union), GOST (Russia) and other international quality system certification. Forever first-class Hongxing Machinery provides services to tens of thousands of mining enterprises around the world and has been universally praised.
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 32
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 34
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 36
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 38
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 40
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 42
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 44
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 46
GYS Hydraulic Cone Crusher Achieves Remote and Machine-side Control 48
FAQ
1. who are we?
We are based in Henan, China, start from 2002,sell to Domestic Market(50.00%),Southeast Asia(18.00%),Africa(17.00%),South America(10.00%),Eastern Europe(4.00%),Oceania(1.00%),South Asia(0.00%),Eastern Asia(0.00%),North America(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Mid East(0.00%). There are total about 1000+ people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Stone Crushing Equipment; Sand Making Equipment; Grinding Mill; Ore Beneficiation Equipment; Building Material Equipment

4. why should you buy from us not from other suppliers?
More than 20 Years manufacturing and engineering experiences Three workshops enable short delivery time Good after-sales services More than 50 engineering staffs provide timely service for the plant design, flow chart design

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Arabic,French,Russian
