GYS Hydraulic Cone Crusher with Safety Cylinder Can Automatically Control the Overload protection and Cavity Cleaning Duntion

Name: GYS Hydraulic Cone Crusher with Safety Cylinder Can Automatically Control the Overload protection and Cavity Cleaning Duntion
Brand: Henan Hongxing Mining Machinery Co., Ltd.
Availability: InStock

Large Image : GYS Hydraulic Cone Crusher with Safety Cylinder Can Automatically Control the Overload protection and Cavity Cleaning Duntion

Product Details:

Contact Now

Detailed Product Description

Product Description

GYS HYDRAULIC CONE CRUSHER

GYS hydraulic cone crusher is a new type of cone crusher that our company optimizes to combine the advantages of single-cylinder hydraulic cone crusher and PSG cone crusher. The high-performance crushing cavity type and the high crushing frequency are combined to improve the machine's processing capacity. It adopts advanced automatic control design concepts and inherits the characteristic of reliable structure and low failure rate of traditional PSG series cone crushers, which can reduce downtime and reduce workers. Labor intensity. Due to the principle of laminating and crushing, the crushed products are mostly cubic structures, which greatly reduces the needle-like materials.

Application fields

Metallurgical industry, building materials industry and silicate industry. Construction stone crushing, metal ore crushing, cement, road construction, chemical energy and other fields.

Product Structure

Product structure

The structure of the cone crusher mainly includes a frame, a horizontal shaft, a moving cone, a balance wheel, an eccentric sleeve, an upper crushing wall (fixed cone), a lower crushing wall (moving cone), a hydraulic coupling, a lubrication system, and a hydraulic system.

Working Principle

Working principle

When the cone crusher is working, the motor rotates through the pulley or coupling, the transmission shaft and the cone part to make a pendulum motion around a fixed part under the force of the eccentric sleeve, forcing the crushing wall to sometimes approach and sometimes deviate from the whitening wall surface fixed on the adjusting sleeve. In this way, the ore will be continuously impacted, squeezed and bent in the crushing chamber to achieve ore crushing.

Equipment Advantage

Equipment advantage

A) Automatic control of overload protection and cleaning chamber function by using bumper;

B) Fully automatic control system is easy for remote and side-by-side control;

C) Hydraulic lubrication oil station with small volume Electrical connection adopts aviation plug, no wiring required;

D) Discharge opening is adjusted by hydraulic cylinder;

E) The dust collector is sealed with dry oil. Reliable structure and low failure rate;

F) The steel frame base structure is adopted, which has low requirements for the foundation and reduces the foundation investment.

Technical parameters

Model	Cavities	Diameter of large end of crushing cone(mm)	Feeding size(mm)	Max.feeding size(mm)	Adjusting range of discharge opening(mm)	Processing capacity(t/h)	Power(kW)
GYS500	C1	1600	269	215	25-64	280-650	200
			C2		241	190		22-51	258-450
			C3		209	170		16-38	180-410
			F1		133	105		10-25	162-355
			F2		89	70		6-19	136-330
			F3		70	55		5-13	90-300

Packing & Delivery

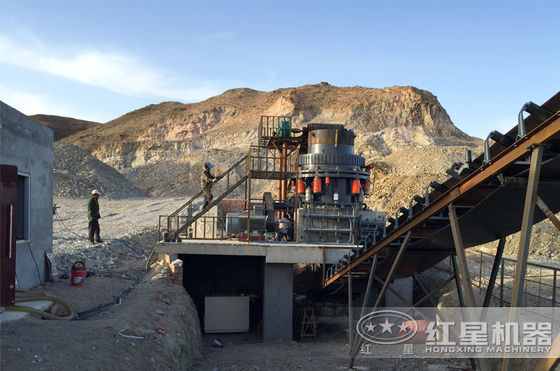

Customer site

Company Profile

Hongxing Group is a comprehensive large scale joint stock enterprise integrating scientific research, production, sales and after sales. Formerly known as the 55201 Machine Factory of the Chinese People's Liberation Army, it was a military enterprise and an important enterprise of "high-tech" scientific research and technology development in China at that time, with a strong technical background.The existing R&D,management, production and marketing staff of more than 2,300 people, four modern production bases covering an area of 350,000 square meters, is a national high tech enterprise and domestic high-e mining machine production and
export base. The Group focuses on mining machine manufacturing, covering four series crushing sand making, screening and grinding, while providing customers with engineering design and EPC general contracting services, adhering to the "one enterprise, one policy" tailor-made ore processing solutions.

Four major production bases

For more than 40 years, the Group has never forgotten t he original intention of creating a Chinese industrial brand and creating a world class mining machine, always adhering to the mission of creating greater value for customers, continuously improving scientific research investment in the development of new products, optimizing and upgrading project solutions, and making unremitting efforts to improve the production and operation income of customers. Products have passed ISO9001, CE (European Union), GOST (Russia) and other international quality system certification. Forever first-class Hongxing Machinery provides services to tens of thousands of mining enterprises around the world and has been universally praised.

FAQ

1. who are we?
We are based in Henan, China, start from 2002,sell to Domestic Market(50.00%),Southeast Asia(18.00%),Africa(17.00%),South America(10.00%),Eastern Europe(4.00%),Oceania(1.00%),South Asia(0.00%),Eastern Asia(0.00%),North America(0.00%),Western Europe(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Mid East(0.00%). There are total about 1000+ people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Stone Crushing Equipment; Sand Making Equipment; Grinding Mill; Ore Beneficiation Equipment; Building Material Equipment

4. why should you buy from us not from other suppliers?
More than 20 Years manufacturing and engineering experiences Three workshops enable short delivery time Good after-sales services More than 50 engineering staffs provide timely service for the plant design, flow chart design

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese,Spanish,Arabic,French,Russian
