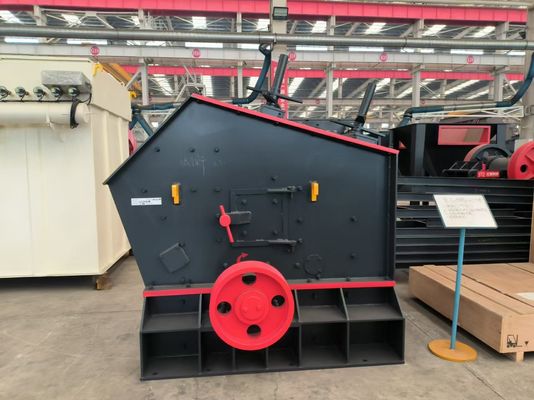

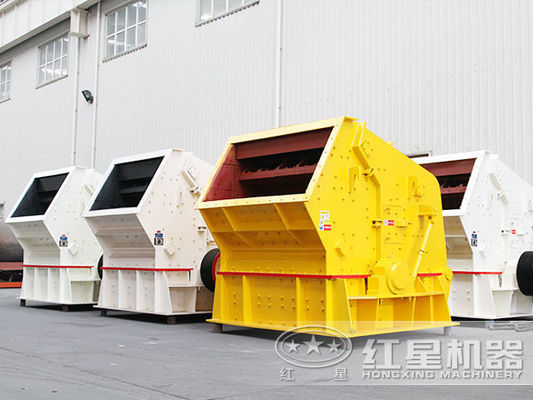

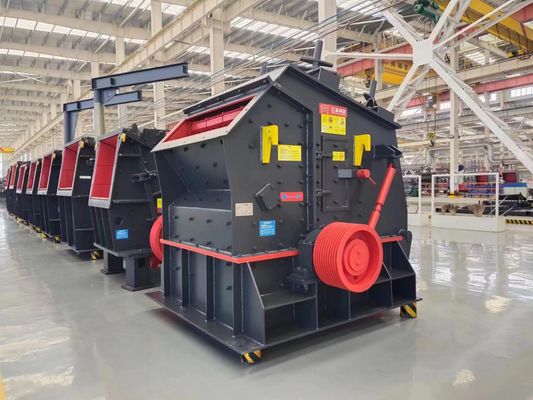

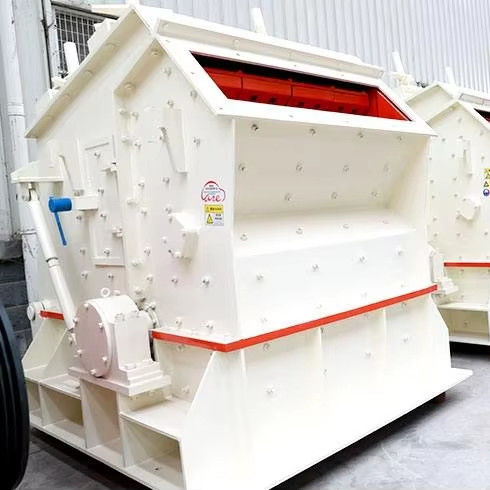

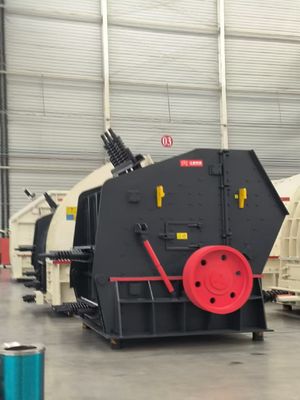

PF 1214 Impact Crusher with High Crushing Chamber

PF 1214 Impact Crusher with High Crushing Chamber
PF 1214 Impact Crusher with High Crushing Chamber PF 1214 Impact Crusher with High Crushing Chamber PF 1214 Impact Crusher with High Crushing Chamber PF 1214 Impact Crusher with High Crushing Chamber PF 1214 Impact Crusher with High Crushing Chamber PF 1214 Impact Crusher with High Crushing Chamber PF 1214 Impact Crusher with High Crushing Chamber

Large Image :  PF 1214 Impact Crusher with High Crushing Chamber

Product Details:
Contact Now
Detailed Product Description

Product Description
PF 1214 Impact Crusher with High Crushing Chamber 0
PF series impact crusher
PF series impact crusher integrates the current domestic and international new technology and combines with the working conditions of sand and gravel industry to refine the rotor and crushing cavity for different fields of application. We use new high wear-resistant materials to greatly improve equipment performance and throughput. It is a kind of very important mining crushing equipment. The size of the discharge size can be adjusted, and the crushing specifications are diversified.
Unique structural design and advanced manufacturing technology has been adopted on this crusher design. The impact crushers are widely used in the crushing of low-abrasive materials with medium hardness and below such as railways, high ways, energy, building
materials, chemical industries and other industries.
PF 1214 Impact Crusher with High Crushing Chamber 2
Application fields
Limestone, river pebble, coal gangue, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc.
Product Structure
PF 1214 Impact Crusher with High Crushing Chamber 4
Structural features
A) The triple countermeasure plate structure increases the hammer head loss, reduces hard extrusion and hardness, reduces hammer head loss, and extends the life of wear-resistant parts.
B) The gap between the impact plate and the hammer head can be easily adjusted by adjusting the bolts to effectively control the particle size of the discharge.
C) The PF1315 type cover is equipped with a hydraulic device to make maintenance more convenient.
PF 1214 Impact Crusher with High Crushing Chamber 6
PF 1214 Impact Crusher with High Crushing Chamber 8
Working Principle
PF 1214 Impact Crusher with High Crushing Chamber 10
Working principle
After the material enters, it hits the high-speed rotating head and is hit head-on by the hammer. The large pieces of material are immediately broken, and the broken materials fly to the impact plate at high speed for the second hammer collision and crushing. The rebound and the subsequent flying transactions are interrelated and destroyed to achieve the final destruction purpose.
Equipment Advantage
PF 1214 Impact Crusher with High Crushing Chamber 12
Equipment advantage
A) High efficiency and energy-saving
Big feeding inlet and high crushing chamber, which are applicable for large—lump hard materials with low powder rate.
B) Fantastic particle type
The interval between impact plate and hammer can be easily adjusted, which effectively control the discharging size to simplify the crushing circuit and ensure good cubic particle shape.
C) Unique structure
Simple Compact structure; keyless connection; strong rigidity; the rotor has a large moment of inertia.
D) High comprehensive efficiency
High chromium hammer and special impact liner plate, resistance to wear, large impact force, easy maintenance, reliable performance.
PF 1214 Impact Crusher with High Crushing Chamber 14
PF 1214 Impact Crusher with High Crushing Chamber 16
PF 1214 Impact Crusher with High Crushing Chamber 18
Technical Parameter
Technical Parameter of  Impact Crusher
PF 1214 Impact Crusher with High Crushing Chamber 20
Model
Specifications
(mm)
Feed Opening Size (mm)
Max Feeding Size
(mm)
Capacity
(t/h)
 Weight (t)
PF-1007
φ1000*700
400*730
300
30-70
12
PF-1010
φ1000*1050
400*1080
350
50-90
15
PF-1210
φ1250*1050
400*1080
350
70-130
17.7
PF-1214
φ1250*1400
400*1430
350
100-180
22.4
PF-1315
φ1320*1500
860*1520
500
130-250
27
PF-1320
φ1300*2000
993*2000
500
165-320
34
PF-1520
φ1500*2000
830*2040
700
300-500
50
PF-1820
φ1800*2000
1260*2040
800
600-800
83
Packing & Delivery

Packaging & Delivery of Mining Equipment

1.The motor will be packed in wooden case

2. Main machine nude packing in Container / Flat Rack

3. Delivery time :10-15 days

PF 1214 Impact Crusher with High Crushing Chamber 22
PF 1214 Impact Crusher with High Crushing Chamber 24
PF 1214 Impact Crusher with High Crushing Chamber 26
Customer site

Whole crushing plant site pictures:(feeder+jaw crusher+impact crusher+screen etc)
