China Hot Sale Good Quality 430-1145t/h Quarry CJ160 European Type Jaw Crusher Stone Quarry Jaw Breaker for Sale

Name: China Hot Sale Good Quality 430-1145t/h Quarry CJ160 European Type Jaw Crusher Stone Quarry Jaw Breaker for Sale
Brand: Henan Hongxing Mining Machinery Co., Ltd.
Availability: InStock

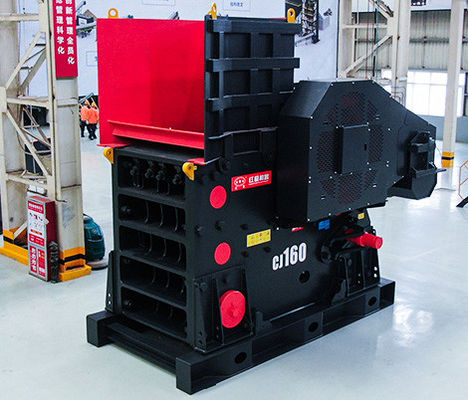

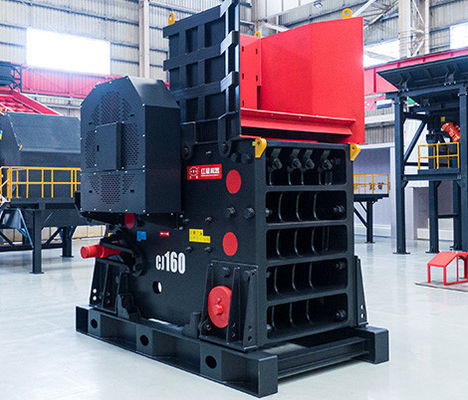

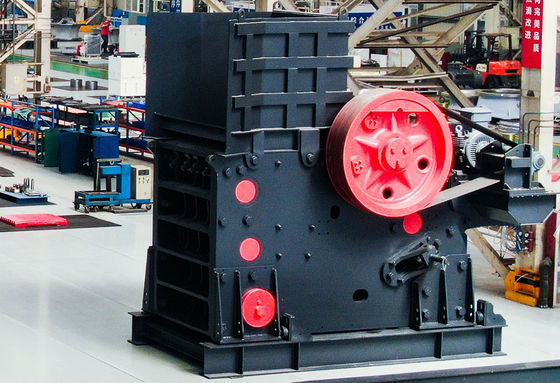

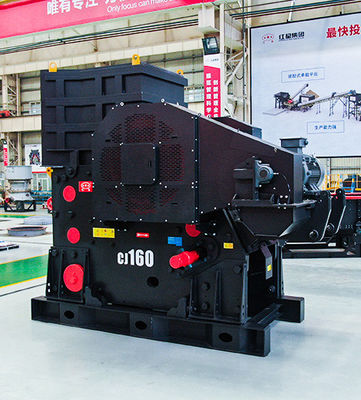

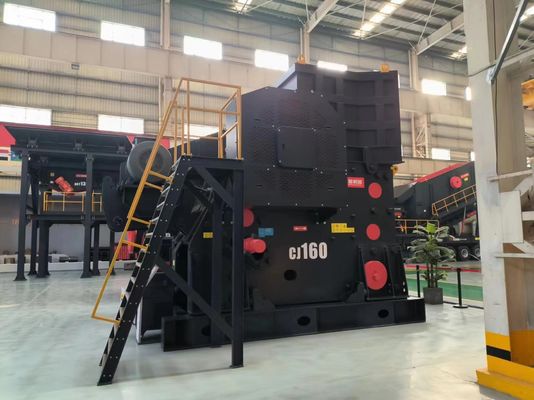

Large Image : China Hot Sale Good Quality 430-1145t/h Quarry CJ160 European Type Jaw Crusher Stone Quarry Jaw Breaker for Sale

Product Details:

Contact Now

Detailed Product Description

Equipment Introduction

The CJ series jaw crusher is with excellent performance introduced b y Henan Hongxing Mining Machinery Co., Ltd. based on the needs of customers. Different from the traditional jaw crusher, there a are significant improvements in the crusher's motion parameters,structural forms, and adjustment methods.

Equipment Advantage

Bolted Frame

Integral Motor Bracket

Wedge Adjusting Discharge Port

Oversized Bearings

The CJ series jaw crusher has less occupied space, larger crushing ratio and more stable operation. It has more advantages in transportation,installation, maintenance and adjustment. Particularly suitable for fixed crushing lines and mobile crushing
plants.

Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. HongXing manufactures coarse jaw crusher and fine jaw crusher in stationary type or mobile type.

Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,
such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore,copper ore, gold ore etc.

Model	Max.Feeding Size(mm)	Feeding Opening Size	Adjustment Range of Discharge Port(mm)	Capacity(mm)	Power(kw)	Dimensions (LWH)(mm)
CJ160	960	1600*1200	150-300	430-1145	4P 250	578034603580

Working Principle

The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or split when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

Technical Parameter

Note.

Product pictures and parameters about models, data, performances and specifications on this website are for reference only. There is a chance that HongXing may make changes on above-mentioned information. For specific messages, please refer to the real objects and user manuals. Without special instructions, HongXing keeps the right to explain all data involved in this website.

Company Introduction

Ahout HongXing

Hongxing Group is a comprehensive large scale joint stock enterprise integrating scientific research, production, sales and after sales. Formerly known as the 55201 Machine Factory of the Chinese People's Liberation Army, it was a military enterprise and an important enterprise of "high-tech" scientific research and technology development in China at that time, with a strong technical background.The existing R&D,management, production and marketing staff of more than 2,300 people, four modern production bases covering an area of 350,000 square meters, is a national high tech enterprise and domestic high-e mining machine production and export base. The Group focuses on mining machine manufacturing, covering four series crushing sand making, screening and grinding, while providing customers with engineering design and EPC general contracting services, adhering to the "one enterprise, one policy" tailor-made ore processing solutions

Factory Introduction

Four production bases

For more than 40 years, the Group has never forgotten t he original intention of creating a Chinese industrial brand and creating a world class mining machine, always adhering to the mission of creating greater value for customers, continuously improving scientific research investment in the development of new products, optimizing and upgrading project solutions, and making unremitting efforts to improve the production and operation income of customers. Products have passed ISO9001, CE (European Union), GOST (Russia) and other international quality system certification. Forever first-class Hongxing Machinery provides services to tens of thousands of mining enterprises around the world and has been universally praised.

Customer Photos and Company Honor

Our service

Packaging & Shipping

Ways of Packing: 1.Sand blasting, coat with high quality paint; 2.Product wrap by PP-Bubble 3.Load container, Spear Parts in wooden case.

Transportation: 1. By sea Freight; 2.MSK/MSC/APL/EMC/WANHAI/KLINE 3. We will remind you before boat arrival

Get Price

If you are interested with our products, please don't hesitate to contact us now!

You can tell me the following questions, Then I can send you accurate quotation, including additional discount! 1. Which machine do you need? like stone crusher, grinding mill or beneficiation machine, etc.

2. what is your raw material plan to process? like limestone, granite or iron ore, etc.

3. The capacity you need. Like 100 tones per hour or 2000 tones per day.

4. Your contact information. Both Email and phone number are essential, we can contact you easier.

Now,please click the following contact to send us email or chat online!
