HD72 German Type Jaw Crusher 50-120t/h Stone Crusher Factory Price Hongxing Brand

Name: HD72 German Type Jaw Crusher 50-120t/h Stone Crusher Factory Price Hongxing Brand
Brand: Henan Hongxing Mining Machinery Co., Ltd.
Availability: InStock

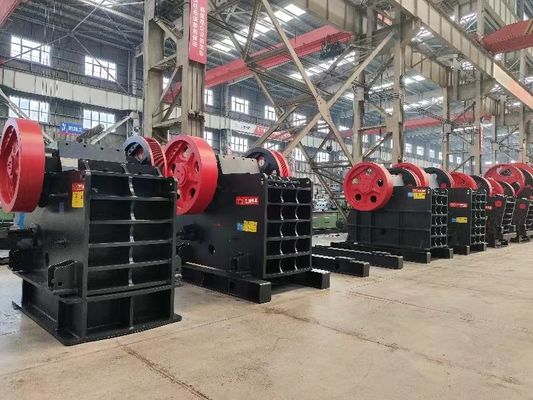

Large Image : HD72 German Type Jaw Crusher 50-120t/h Stone Crusher Factory Price Hongxing Brand

Product Details:

Contact Now

Detailed Product Description

Product Description

Brief Introduction of The Production

The Jaw crusher is used as Primary and Secondary crushers for crushing all kinds of minerals and rocks with compressive strength less than 320 Mpa.
There are two types of Jaw crusher: coarse jaw crusher and fine jaw crusher. We Henan Hongxing Machinery also manufactures Mobile jaw crusher, Single toggle jaw crusher and other crushers.

Jaw crushers machine are invented in 1858 and first widely applied in road paving and then in mines. As one kind of small jaw crusher, it has many particular characteristics such as high crushing ratio, even product granularity, simple structure, reliable working condition, convenient maintenance and economical operation cost. The small jaw crusher also called pe jaw crusher in the mining industry. PE jaw crusher machine has the same advantages with stone crusher.

Specification

item	value
Applicable Industries	Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
Condition	New
Type	Jaw Crusher
Application	Mining, construction, etc
Motor Type	AC Motor
Capacity(t/h)	50-120
Place of Origin	China
Brand Name	Hongxing
Dimension(LWH)	2100x1556x1640 mm
Weight	1-16t
Certification	ISO CE GOST
Warranty	1 YEAR
After-sales Service Provided	Video technical support, Online support, Field installation, commissioning and training
Warranty of core components	1 YEAR
Core components	Motor, Bearing
Key Selling Points	High productivity
Model	HD72
Color	Customer Requirement
Max feeding size	425mm
Motor power	55kw
Quality	High Level
Price	Competetive (can Discuss
Test&Installation	Pofessional Engineer Assigned
Market	Globe
Factory visit	Warmly Welcomed

Technical parameters

Model

Feeding size (mm)

Max. feeding size (mm)

Adjustable range of discharge opening (mm)

Capacity (t/h)

Power

(kw)

Dimensions (LxWxH mm)

Working Principle

The working principle of the jaw crusher is: the motor drives the belt and pulley, through the eccentric shaft to move the jaw up and down, when the jaw rises, the Angle between the elbow plate and the jaw increases, so as to push the jaw plate close to the fixed jaw plate, and at the same time, the material is crushed or split to achieve the purpose of crushing;When the movable jaw descends, the Angle between the bracket and the movable jaw becomes smaller, and the movable jaw leaves the fixed jaw under the action of pull rod and spring. At this time, the broken material is discharged from the lower mouth of the crushing chamber.With the continuous rotation of the motor, the mechanical jaw is broken for periodic movement to crush and discharge materials, so as to achieve mass production.

Part of Product

pulley

flywheel

belt pulley

gnathochilarium

propeller Shaft

lubricating system

conditioner

manual grease station

spring

motor

rack

Packing & Delivery

1. The motor will be packed in wooden case.

2. If export to European countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
3. It will be separated to put into one container.

Working Site

Our factory

Hongxing is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machinery and integrating scientific research,production and sales together.It currently has three large-scale production bases.

The company headquarter is located in Zhengzhou High-tech Industrial Development Zone,with a total of area of 350,000 square meters,260,000 square meters of
standardized heavy industrial workshop,and more than 600 advanced production and processing equipment.There are more than 2,300 online employees,including more than 3600 management cadres and engineering technician with middle and senior titles.
Hongxing built an internationally advanced production line and a first-class modern testing base,establishing a sand and stone machine research institute,a milling machine research institute,a mineral processing equipment research institute and a building material equipment research institute.All the products have passed the ISO9001,CE and GOST international quality system certification.
Its reliable and stable quality makes the company's production and sales volume and various comprehensive economic indicators steps into the forefront of the domestic industry,tens of thousands of users all over the country and exported to more than 100 countries.
