China Hot Sale Materials HPM 650 220-790 T/h Multi-Cylinder Hydraulic Cone Crusher for Ore Mining

Name: China Hot Sale Materials HPM 650 220-790 T/h Multi-Cylinder Hydraulic Cone Crusher for Ore Mining
Brand: Henan Hongxing Mining Machinery Co., Ltd.
Availability: InStock

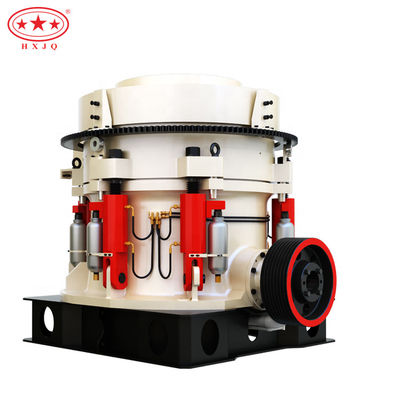

Large Image : China Hot Sale Materials HPM 650 220-790 T/h Multi-Cylinder Hydraulic Cone Crusher for Ore Mining

Product Details:

Contact Now

Detailed Product Description

China Hot Sale HPM 200 81-250 t/h Multi-Cylinder Hydraulic Cone Crusher for Ore Mining with Low Price

Multi-cylinder hydraulic cone crusher is upgraded based on the traditional spring cone crusher by Hongxing Machinery combining the advanced technology.

It can be used in the processing of raw materials such as mining, metallurgy, construction, chemical industry, electric power, highway, etc. It is a representative of materials with medium hardness and fine crushing. This machine uses advanced technology and has good performance and stability, which is widely welcomed by the majority of users.

Equipment Advantage

Laminated Crusher

Ensure the cube shape

Positive Pressure Dust Proof System

Effectively prevent dust and other sundries from entering the equipment and oil tank to avoid lubricating oil pollution

No Glue Packing,Easy to Change

Replacing lining board is economical and time saving

Zero Degree Spiral Bevel Gear

High transmission efficiency,quiet, prevent burning sleeve

The structure of the HPM multi cylinder cone crusher mainly consists of main shaft,bearing design,mantle,concave,hydraulic motor,hydraulic insurance and automatic cavity cleaning,gear,positive pressure dust proof system,oil station.

When working, the motor drives the belt wheel or coupling, and the transmission shaft and the conical part make the eccentric shaft do periodic swing motion under the axis line. After the material enters the crushing chamber from the feed port, it is crushed by the mutual impact extrusion, grinding and kneading of the eccentric shaft and the rolling mortar wall. The material broken to the required particle size falls under its own gravity and is discharged from the bottom. The hydraulic insurance system can use hydraulic pressure to jack up the support sleeve and the fixed cone to eliminate the fault when the equipment has an iron failure or a stuffy car phenomenon. While playing a good insurance role, it greatly reduces the maintenance rate and improves Improved production efficiency.

Application

HPM multi-cylinder hydraulic cone crusher is widely used to crush metaliferous and non-metaliferous ores, such as iron ore, sandstone pebble, limestone, granite, basalt, diabase, cobble, etc

Technical Parameter

Model	Cavities	Feeding Size(mm)	Max.Feeding Size(mm)	Min.Discharging Size(mm)	Processing Capacity(t/h)	Power(kw)
HPM200	C1	185	145	22	160-250	160
		C2	125	100	18		145-250
		C3	95	75	14		120-250
		F1	76	60	12		108-210
		F2	54	45	10		81-445
HPM300	C1	235	190	26	230-445	220
		C2	211	170	20		200-445
		C3	150	120	16		180-445
		C4	107	85	14		160-220
		F1	53	40	12		140-220
HPM400	C1	299	240	35	270-630	315
		C2	252	200	25		252-630
		C3	198	160	25		243-630
		C4	111	190	18		210-630
		F1	92	75	15		162-370
		F2	52	40	13		126-370
HPM500	C1	335	270	38	365-790	400
		C2	286	230	30		328-790
		C3	204	165	22		280-790
		C4	133	105	20		202-450
		F1	95	75	16		175-450
		F2	52	42	8		158-450
HPM650	C1	328	262	30	386-790	500
		C2	279	225	25		348-790
		C3	196	175	20		300-790
		F1	106	85	13		280-530
		F2	52	42	9		220-530
HPM800	C1	353	280	38	616-1100	630
		C2	297	240	38		522-1100
		C3	267	214	25		495-1100
		C4	219	175	22		380-1100
		F1	155	125	20		328-730
		F2	92	75	16		270-730
