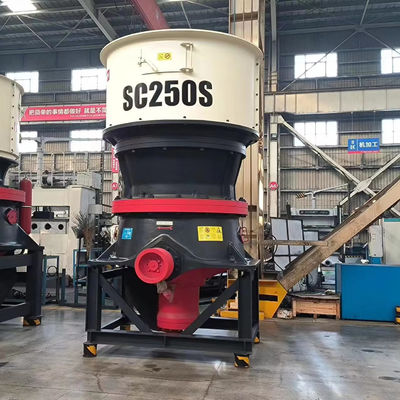

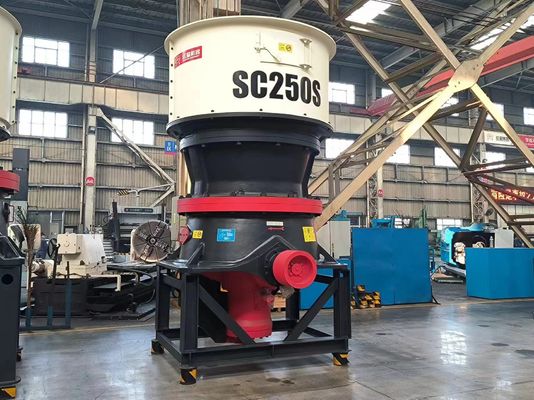

SC250 90-396 T/h Single Cylinder Hydraulic Cone Crusher With Best Factory Price for Mining

Name: SC250 90-396 T/h Single Cylinder Hydraulic Cone Crusher With Best Factory Price for Mining
Brand: Henan Hongxing Mining Machinery Co., Ltd.
Availability: InStock

Large Image : SC250 90-396 T/h Single Cylinder Hydraulic Cone Crusher With Best Factory Price for Mining

Product Details:

Contact Now

Detailed Product Description

Equipment Introduction

SC series cone crusher is developed on the basis of absorbing the world's most advanced technology and integrating the company's years of design experience, integrating mechanical, hydraulic, electrical, intelligent control and remote control. Compared with other cone crushers, it has large production capacity and low energy consumption.

Equipment Introduction

Constant crushing chan nber type

In the whole lining wear life cycle, the dis charge particle size and productivity remain basically unchanged.

Positive pressure dust proof system

Effectively prevent dust and other sundries from entering the equipment and oil tank to avoid lubricating oil pollution.

No glue packing lining plate install ation, easyreplacement.

No glue packing structure can reduce the replacement time of lining board, save the replacement cost,Improve equipment uptime.

Intelligent control system

The human-machine interaction interface is easy to understand, easy to use and efficient, making the operation and maintenance simple, maximize productivity.

Model	Cavities	Feeding Size(mm)	Max.Feeding Size(mm)	Min.Discharging Size(mm)	Processing Capacity(t/h)	Power(KW)
SC250	F1	240	190	16	116-396	250
		F2	140	110	13		97-346
		F3	70	55	9		90-251

Working Principle

When the single-cylinder hydraulic cone crusher is working, motor drive the eccentric sleeve by v-belts, transmission shaft and transmission gear. Dynamic cone rotary pendulum moved with the action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation. Material is squeezed in the crushing cavity, impact and breakage, broken material discharge from the bottom.

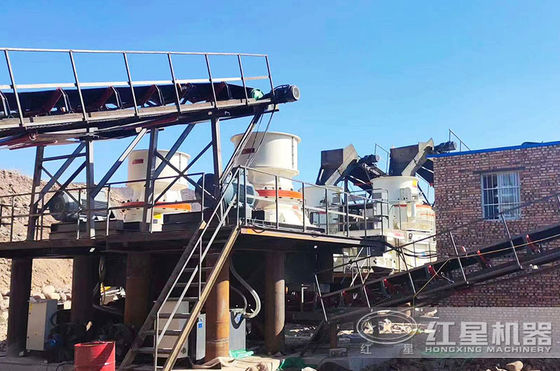

Application

Single-cylinder hydraulic cone crusher is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemical industry, etc. It could crush limestone, granite, basalt, riverstone, coal gangue, quartz, diabase, iron ore, cooper ore, zinc ore, manganese ore with medium compressive strength or the above.

Technical Parameter

Company Introduction

About HongXing

Hongxing Group is a comprehensive large scale joint stock enterprise integrating scientific research, production, sales and after sales. Formerly known as the 55201 Machine Factory of the Chinese People's Liberation Army, it was a military enterprise and an important enterprise of "high-tech" scientific research and technology development in China at that time, with a strong technical background.The existing R&D,management, production and marketing staff of more than 2,300 people, four modern production bases covering an area of 350,000 square meters, is a national high tech enterprise and domestic high-e mining machine production and export base. The Group focuses on mining machine manufacturing, covering four series crushing sand making, screening and grinding, while providing customers with engineering design and EPC general contracting services, adhering to the "one enterprise, one policy" tailor-made ore processing solutions

Four production bases

For more than 40 years, the Group has never forgotten t he original intention of creating a Chinese industrial brand and creating a world class mining machine, always adhering to the mission of creating greater value for customers, continuously improving scientific research investment in the development of new products, optimizing and upgrading project solutions, and making unremitting efforts to improve the production and operation income of customers. Products have passed ISO9001, CE (European Union), GOST (Russia) and other international quality system certification. Forever first-class Hongxing Machinery provides services to tens of thousands of mining enterprises around the world and has been universally praised.

Customer Photos and Company Honor

Our service

Packaging & Shipping

Ways of Packing: 1.Sand blasting, coat with high quality paint; 2.Product wrap by PP-Bubble 3.Load container, Spear Parts in wooden case.

Transportation: 1. By sea Freight; 2. MSK/MSC/APL/EMC/WANHAI/KLINE 3. We will remind you before boat arrival
