Low Price Hydraulic Cone Crusher - High Quality, Best Selling for Aggregate Production

Name: Low Price Hydraulic Cone Crusher - High Quality, Best Selling for Aggregate Production
Brand: Henan Hongxing Mining Machinery Co., Ltd.
Availability: InStock

Large Image : Low Price Hydraulic Cone Crusher - High Quality, Best Selling for Aggregate Production

Product Details:

Contact Now

Detailed Product Description

HXGYS 300 Hydraulic Cone Stone Crusher 36-180 t/h Low Price for Coal Granite Gold Ore Mining

Multi-cylinder hydraulic cone crusher is upgraded based on the traditional spring cone crusher by Hongxing Machinery combining the advanced technology.

It can be used in the processing of raw materials such as mining, metallurgy, construction, chemical industry, electric power, highway, etc. It is a representative of materials with medium hardness and fine crushing. This machine uses advanced technology and has good performance and stability, which is widely welcomed by the majority of users.

Equipment Advantage

Laminated Crusher

Ensure the cube shape

Positive Pressure Dust Proof System

Effectively prevent dust and other sundries from entering the equipment and oil tank to avoid lubricating oil pollution

No Glue Packing,Easy to Change

Replacing lining board is economical and time saving

Zero Degree Spiral Bevel Gear

High transmission efficiency,quiet, prevent burning sleeve

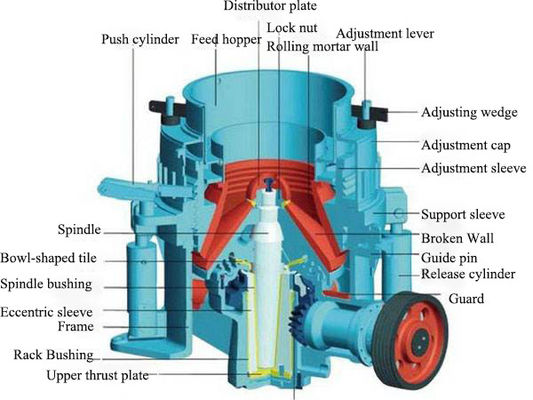

The structure of the HPM multi cylinder cone crusher mainly consists of main shaft,bearing design,mantle,concave,hydraulic motor,hydraulic insurance and automatic cavity cleaning,gear,positive pressure dust proof system,oil station.

When working, the motor drives the belt wheel or coupling, and the transmission shaft and the conical part make the eccentric shaft do periodic swing motion under the axis line. After the material enters the crushing chamber from the feed port, it is crushed by the mutual impact extrusion, grinding and kneading of the eccentric shaft and the rolling mortar wall. The material broken to the required particle size falls under its own gravity and is discharged from the bottom. The hydraulic insurance system can use hydraulic pressure to jack up the support sleeve and the fixed cone to eliminate the fault when the equipment has an iron failure or a stuffy car phenomenon. While playing a good insurance role, it greatly reduces the maintenance rate and improves Improved production efficiency.

Application

HPM multi-cylinder hydraulic cone crusher is widely used to crush metaliferous and non-metaliferous ores, such as iron ore, sandstone pebble, limestone, granite, basalt, diabase, cobble, etc

Technical Parameter

Model	Cavities	Diameter of Large End of Crusher Cone(mm)	Feeding Size(mm)	Max.Feeding Size(mm)	Adjusting Range of Discharge Opening(mm)	Processing Capacity(t/h)	Power(kw)
GYS300	C1	910	175	140	13-38	81-180	90
			C2		102	80		9-22	60-180
			F1		76	60		3-16	36-145
			F2		41	30		3-13	36-130
GYS400	C1	1300	241	190	19-51	207-400	200
			C2		210	168		16-38	162-350
			C3		137	110		13-31	126-310
			F1		105	85		8-25	109-230
			F2		89	70		6-16	82-230
			F3		64	50		3-16	40-230
GYS500	C1	1600	269	215	25-64	280-650	280
			C2		241	190		22-51	258-450
			C3		209	170		16-38	180-410
			F1		133	105		10-25	162-355
			F2		89	70		6-19	136-330
			F3		70	55		5-13	90-300
