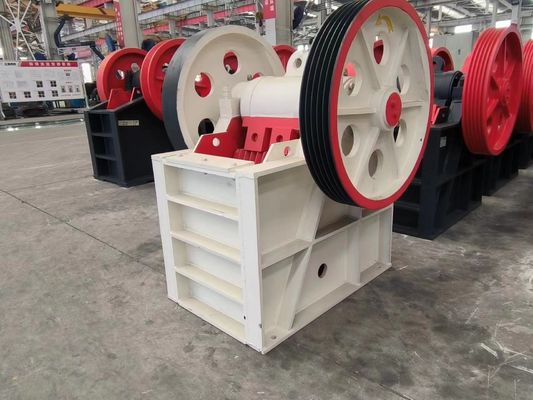

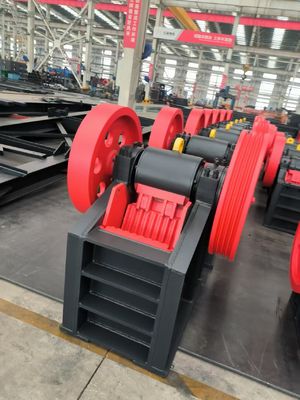

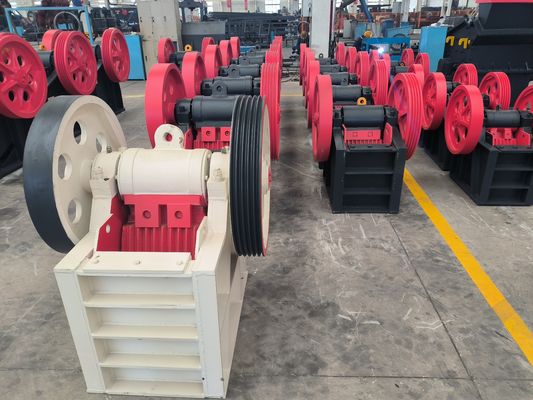

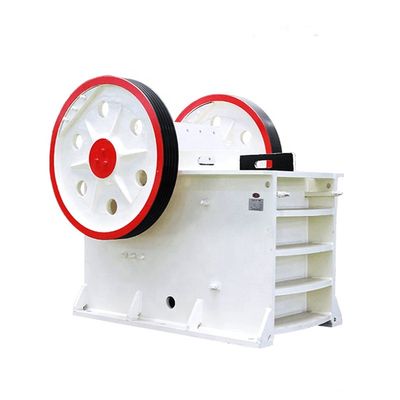

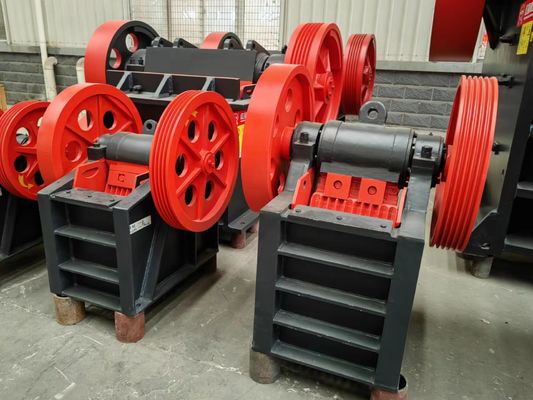

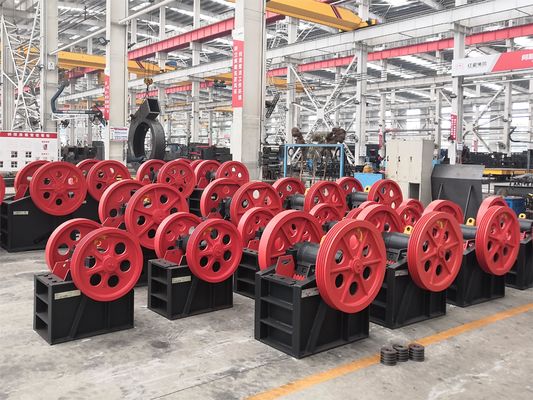

Factory Small Stone Crusher Rock Crusher PE200*300 Jaw Crusher for Granite Gold Ore Basalt Quarry Limestone Concrete Crushing

Jaw crusher is mainly used for the medium-granularity crushing of all kinds of ores and large materials in mine, metallurgy, building material, highway, railway, water conservancy and chemistry. The maximum compression strength of the materials to be crushed is 320MPa.

1. It adopts world-level manufacturing technology and high-end manufacturing materials.

2. More advanced movable jaw assembly makes it more durable. The movable jaw assembly uses high-quality steel casting and drives through two large-sized cast steel flywheels. In addition, the heavy eccentric shaft also adopts forging stock which makes JC series jaw crusher have extraordinary reliability.

3. The bearing pedestal adopts unitary cast steel structure. The unitary cast steel bearing pedestal can ensure comprehensive fitting with the crusher rack, and at the same time, greatly increase the radial strength of the bearing pedestal, whereas split type bearing pedestal does not have these advantages.

The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the electro motor, the movable jaw of the crusher will do periodic motion to crush and discharge the materials, thus realizing mass production.

Henan Hongxing Mining Machinery Co., Ltd. is a large-sized joint-stock enterprise integrated with the scientific research, production and sales of heavy mining machinery. It is located in high and new technology industrial development zone, Zhengzhou with an area of 200,000 m². We have two standard heavy industrial workshops covering 60,000 m², more than 200 machines used for gold processing, plug welding and assembling with large and medium sizes and more than 960 workers including over 160 administrators with intermediate and senior title and engineering technicians.

Green industry has always been one of the development strategies of our company being called Hongxing mining machinery, and our company strives to take full advantage of the advanced technology, the excellent talents in order to catch up with the internationalization pace all over the world. Our company can provide the strong support for our customers and partners, which will not let you down on our products and sale service at the same time.
